Introduction:

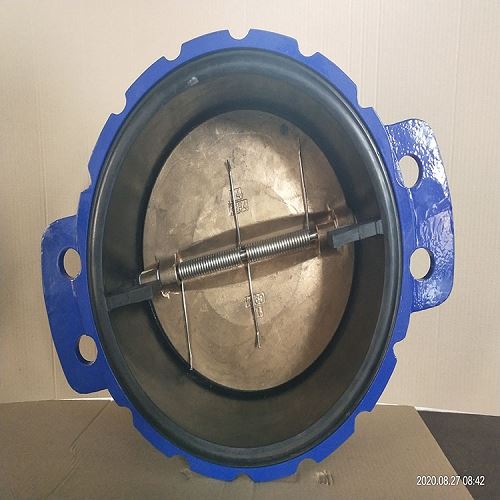

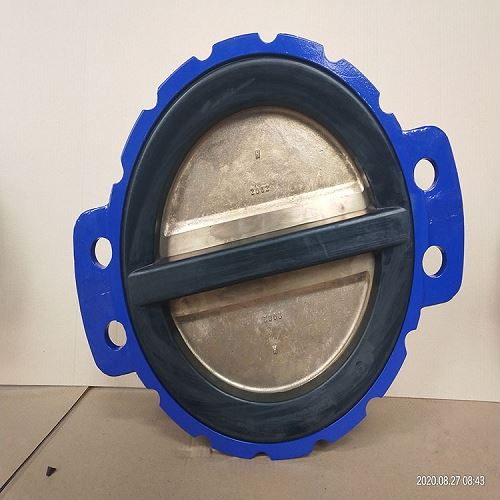

There are two common types of full-cover rubber check valves: wafer type and flange type. H77X, H77J fully encapsulated rubber check valve is composed of valve body, valve disc, valve stem and spring and other components, which are connected by clamps. Water hammer is significantly reduced due to the short closing stroke of the disc and spring loaded. Because its structural length is shorter than that of general check valves, it is more suitable for places with limited installation space.
Application:
Suitable for water supply and drainage network of cities, industries and high-rise buildings.
 |  |
Specification:
Valve Size: | 2"-32" |
Pressure Class: | 125LB-150LB(PN6-PN25) |
Matierials: | GGG40, WCB, CF8, CF8M, CF3, CF3M, |
Design and Manufacturing Standards: | BS 5153, EN 12334, API 594, API 6D |
Face to Face Standards: | BS 5155, EN 558-1, ISO5752-16, API594, API 6D |
Flange Dimension Standards: | DIN 2501 PN10 PN16, BS 4504 PN10 PN16, ASME B16.1 125LB, 150LB |
Pressure Test Standards: | DIN 3230 Part3, API 598, EN 12266-1 |
Quality/Product Certifications: | CE, ACS, WRAS, TS... |
Process Connection Types | Wafer/ flange type |
Applicable medium | Fresh water, sewage, sea water, air, steam, food, medicine, all kinds of oil, acid, alkali, etc |
