Hey there! As a supplier of Bellows Gate Valves, I often get asked a bunch of questions about these valves, and one that pops up quite a bit is, "Can a Bellows Gate Valve be installed vertically?" Well, let's dig into this topic and find out.
First off, let's quickly understand what a Bellows Gate Valve is. A Bellows Gate Valve is a type of valve used to control the flow of fluids in a pipeline. It has a gate that moves up and down to either allow or block the flow. The bellows part is a flexible, accordion - like component that provides a seal to prevent leakage, especially in applications where you don't want any fluid escaping into the environment.
Now, the big question: Can it be installed vertically? The short answer is yes, a Bellows Gate Valve can be installed vertically. But like most things in the world of valves, there are some factors to consider.
Advantages of Vertical Installation
One of the main advantages of vertical installation is space - saving. In some industrial settings, floor space is at a premium. By installing the valve vertically, you can utilize the vertical space more effectively. This is especially useful in tight areas where a horizontal installation might not be feasible.
Another benefit is related to drainage. In a vertical installation, if there's any condensate or fluid that might collect in the valve, it can drain out more easily due to gravity. This can be crucial in applications where the presence of stagnant fluid can cause corrosion or other issues over time.
Disadvantages of Vertical Installation
However, there are also some potential downsides. One of the main concerns is the stress on the bellows. When the valve is installed vertically, the weight of the gate and other internal components can put additional stress on the bellows. Over time, this extra stress can lead to premature wear and tear of the bellows, reducing its lifespan.
Another issue is the potential for uneven seating. In a vertical installation, the gate might not seat evenly due to the influence of gravity. This can result in a less - than - perfect seal, leading to leakage. And in applications where a tight seal is critical, this can be a major problem.
Installation Considerations
If you decide to go ahead with a vertical installation, there are some things you need to keep in mind. First, make sure you choose a high - quality Bellows Gate Valve. A well - made valve will be more resilient to the stresses associated with vertical installation.
You also need to pay close attention to the alignment during installation. Any misalignment can exacerbate the problems with stress on the bellows and uneven seating. It's a good idea to have a professional installer handle the job to ensure everything is done correctly.
Comparison with Other Gate Valves
Let's compare Bellows Gate Valves with some other types of gate valves when it comes to vertical installation. For example, the 16bar Dustile Iron Nrs Resilient Seat Wedge Gate Valve also has its own characteristics for vertical installation. This type of valve is known for its resilient seat, which can provide a good seal. However, it might not have the same level of protection against leakage as a Bellows Gate Valve due to the lack of the bellows component.

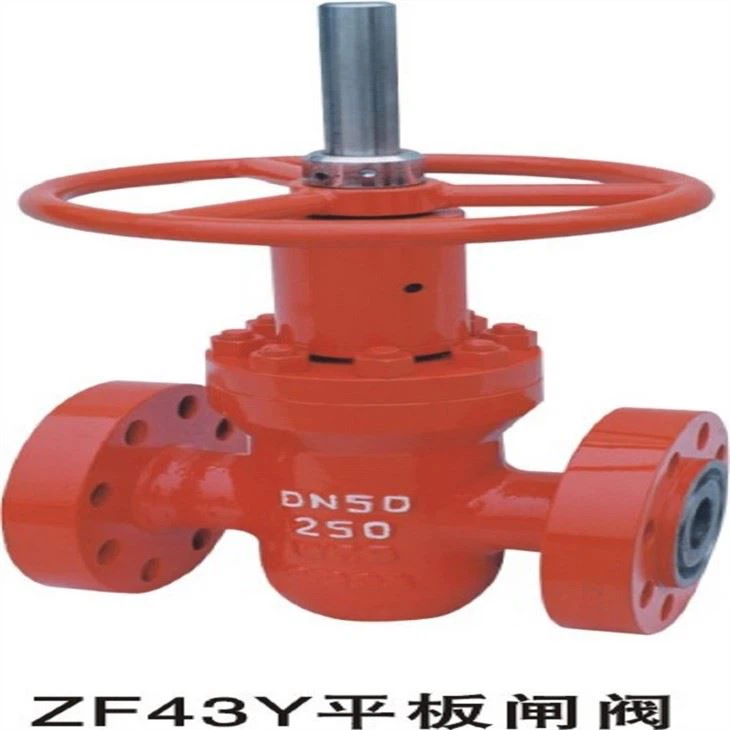

The Parallel Gate Valve is another option. Parallel Gate Valves are often used in applications where a large flow rate is required. When installed vertically, they can also face issues similar to Bellows Gate Valves, such as uneven seating and potential stress on internal components.
The Ductile Cast Iron DN50 - 200 Groove Type Rising Stem Wedge Gate Valve For Fire Fighting is designed specifically for fire - fighting applications. Vertical installation of this valve can be beneficial in fire - suppression systems where space is limited. However, it's important to ensure that the valve is properly maintained to prevent any issues that could compromise its performance during an emergency.
Application - Specific Considerations
The decision to install a Bellows Gate Valve vertically also depends on the specific application. In some industries, like the chemical industry, where the fluid being handled is highly corrosive or toxic, the risk of leakage is a major concern. In such cases, the benefits of the bellows seal might outweigh the potential drawbacks of vertical installation.
On the other hand, in less - critical applications, such as in a water - supply system for a building, the risk of uneven seating or stress on the bellows might be more acceptable.
Maintenance for Vertically Installed Valves
Maintenance is crucial for any valve, but it's even more important for vertically installed Bellows Gate Valves. Regular inspections should be carried out to check for signs of wear on the bellows, such as cracks or leaks. You also need to monitor the seating of the gate to ensure it's still providing a tight seal.
Lubrication of moving parts is also essential. In a vertical installation, the movement of the gate and other components can be affected by gravity, and proper lubrication can help reduce friction and prevent premature wear.
Conclusion
So, to sum it up, a Bellows Gate Valve can be installed vertically, but it's not a decision to be made lightly. You need to weigh the advantages and disadvantages based on your specific application, available space, and budget. If you're unsure, it's always a good idea to consult with an expert in valve technology.
As a Bellows Gate Valve supplier, I'm here to help you make the right choice. Whether you need more information about vertical installation, or you're looking for the perfect valve for your project, I'm just a message away. If you're interested in purchasing Bellows Gate Valves or any of our other valve products, feel free to reach out to start a procurement discussion. We can work together to find the best solution for your needs.
