Hey there, valve enthusiasts! As a long - time flat gate valve supplier, I've had my fair share of discussions about the nitty - gritty details of different types of gate valves. One of the most common questions I get is, "What's the difference between a single - disc and a double - disc flat gate valve?" Well, sit back and let me break it down for you.
Introduction to Flat Gate Valves
Before we dig into the differences, let's have a quick refresher on flat gate valves. These valves are used in a wide range of industries to control the flow of fluids, including oil, gas, water, and various chemicals. They work by raising or lowering a gate (the disc) to allow or block the flow of the fluid through the pipeline.
Flat gate valves are known for their simple design, low pressure drop, and ability to provide a tight seal. They can be used in both high - pressure and low - pressure applications, which makes them pretty versatile. But when it comes to choosing between a single - disc and a double - disc version, it's important to understand their unique characteristics.
Single - Disc Flat Gate Valves
Design and Structure
A single - disc flat gate valve, as the name suggests, has only one solid disc that moves up and down to control the flow. This disc is typically made of metal, like cast iron, carbon steel, or stainless steel, depending on the application requirements. The disc is connected to a stem, which is turned by a handwheel or an actuator to open or close the valve.
Advantages
One of the biggest advantages of single - disc flat gate valves is their simplicity. With fewer parts, there's less that can go wrong. They're also generally more compact and lighter than double - disc valves, which can make them easier to install and handle. Additionally, single - disc valves often offer a good sealing performance, especially when dealing with clean fluids.
Another benefit is cost. Since they have a simpler design, single - disc flat gate valves are usually less expensive to manufacture and purchase. This makes them a popular choice for budget - conscious projects where the valve doesn't need to handle extremely harsh conditions.
Disadvantages
However, single - disc valves do have their limitations. They may not be as effective at sealing in applications with high - viscosity fluids or where there's a lot of debris in the pipeline. The single disc can get stuck or damaged by solid particles, which can affect the valve's performance and lifespan.
Double - Disc Flat Gate Valves
Design and Structure
Double - disc flat gate valves feature two discs that work together. These discs are often spring - loaded or wedged together to ensure a tight seal against the valve seats. The design allows the discs to adjust to any irregularities in the seat surface, which can be really useful in pipelines with uneven surfaces or those that are subject to thermal expansion.
Advantages
The main advantage of double - disc flat gate valves is their excellent sealing capability, even in challenging conditions. The two - disc design provides a more reliable and tighter seal compared to single - disc valves, especially when dealing with high - pressure systems or fluids that are difficult to contain.
They're also better suited for pipelines with a lot of sediment or particulate matter. The dual discs can withstand the impact of debris and still maintain their sealing performance. This makes them a great choice for industries like mining, oil and gas extraction, and wastewater treatment.
Disadvantages
On the flip side, double - disc valves are more complex and have more parts. This means they're generally more expensive to buy and maintain. They're also larger and heavier than single - disc valves, which can make installation more challenging, especially in tight spaces.
Application Differences
The choice between a single - disc and a double - disc flat gate valve often comes down to the specific application.
Single - Disc Applications
Single - disc flat gate valves are commonly used in applications where the fluid is relatively clean and the pressure requirements are not extremely high. For example, they're often found in water supply systems, HVAC (heating, ventilation, and air conditioning) systems, and some light industrial applications. If you're looking for a cost - effective solution for controlling the flow of a clean liquid in a relatively low - stress environment, a single - disc valve might be the way to go.
Double - Disc Applications
Double - disc flat gate valves are the go - to choice for more demanding applications. In the oil and gas industry, they're used in pipelines that transport crude oil, natural gas, and refined petroleum products. They're also widely used in mining operations, where they need to handle slurries and abrasive materials.
If you're dealing with high - pressure systems or fluids that are prone to causing leaks, a double - disc valve is likely to be a better option. The enhanced sealing performance and durability make them a reliable choice for long - term operation in harsh conditions.
Related Products

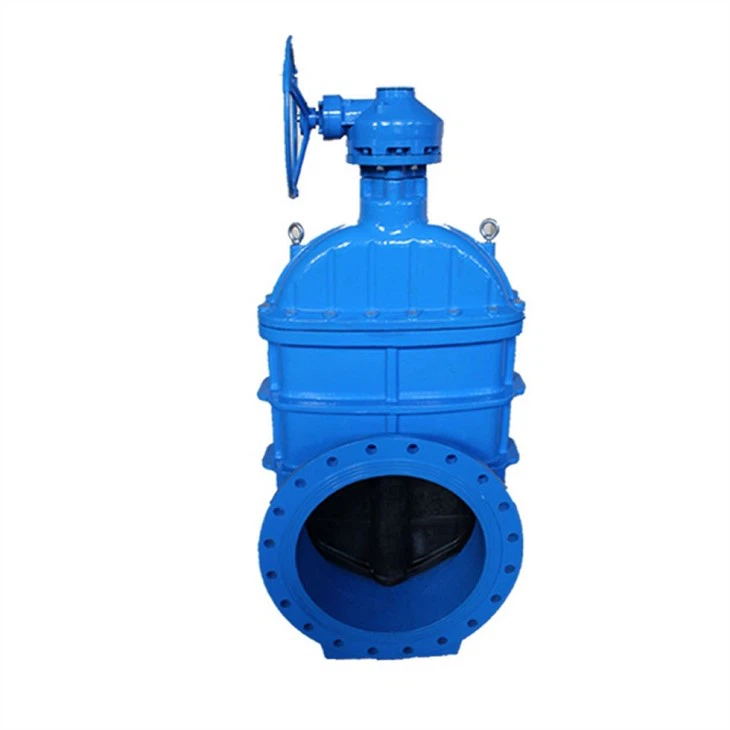

If you're interested in other types of gate valves, you might want to check out some of our related products. We offer a wide range of gate valves, including the Non Rising Stem Groove Resilient Gate Valve, the Non - rising Stem Gate Valve, and the Rubber Seat Gate Valve. Each of these valves has its own unique features and benefits, so it's worth exploring them to find the best fit for your needs.
Making the Right Choice
When it comes to choosing between a single - disc and a double - disc flat gate valve, there's no one - size - fits - all answer. You need to consider factors like the type of fluid you're dealing with, the pressure and temperature of the system, the level of debris in the pipeline, and your budget.
If you're still not sure which valve is right for your application, don't hesitate to reach out to us. As a flat gate valve supplier, we have the expertise and experience to help you make an informed decision. We can provide you with detailed product information, technical support, and even assist with the installation process.
Time to Talk Business
Whether you're in the early stages of planning a new project or you're looking to replace an existing valve, we're here to help. Our team is ready to discuss your specific requirements and provide you with a customized solution. We can offer competitive pricing, high - quality products, and fast delivery times.
So, if you're interested in purchasing flat gate valves, or you just want to learn more about our products, get in touch. Contact us today to start the conversation and take the first step towards finding the perfect valve for your needs.
